| 品牌：横河 | 型号：SARM55C横河端子板 | 应用范围：电缆 |
| 接口类型：其他 | 加工定制：是 |

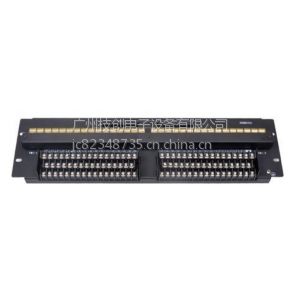

SARM55C横河端子板
广州技创电子设备有限公司大量现货供应——联系人：陈小姐
电话：020-82348735/13710288985，传真：020-82348703
产品介绍：
32路继电器隔离输出端子板
配用DCS模块：ADV551 配套电缆：AKB331
ADV561 配套电缆：AKB337
作用形式：机械式继电器隔离 干接点输出（A为NO，B为NC）
内部连接形式：IDC座 50P 两组 可单一或冗余输入
现场连接形式：M3螺钉带透明盖板端子块四组，端子板可整体拨插
电源接线形式：M3.5螺钉端子
负载：30VDC，1.***每路
最小负载：5V，10mA
内部电源供电：24VDC 0.8***，带LED指示和过流、过压、反接保护
回路指示：LED动作指示
绝缘电阻：最小10MΩ（500VDC）
环境温度和湿度：0~50℃，10-90%RH
尺寸：482mm*127mm
重量：2.0Kg
| ARM55C | |||||
| PIN NO | SIGNAL | TERMINAL | PIN NO | SIGNAL | TERMINAL |
| 50 | OUT1 | 1A/B/C | 49 | OUT17 | 17A/B/C |
| 48 | OUT2 | 2A/B/C | 47 | OUT18 | 18A/B/C |
| 46 | OUT3 | 3A/B/C | 45 | OUT19 | 19A/B/C |
| 44 | OUT4 | 4A/B/C | 43 | OUT20 | 20A/B/C |
| 42 | OUT5 | ***/B/C | 41 | OUT21 | 21A/B/C |
| 40 | OUT6 | 6A/B/C | 39 | OUT22 | 22A/B/C |
| 38 | OUT7 | 7A/B/C | 37 | OUT23 | 23A/B/C |
| 36 | OUT8 | 8A/B/C | 35 | OUT24 | 24A/B/C |
| 34 | OUT9 | 9A/B/C | 33 | OUT25 | 2***/B/C |
| 32 | OUT10 | 10A/B/C | 31 | OUT26 | 26A/B/C |
| 30 | OUT11 | 11A/B/C | 29 | OUT27 | 27A/B/C |
| 28 | OUT12 | 12A/B/C | 27 | OUT28 | 28A/B/C |
| 26 | OUT13 | 13A/B/C | 25 | OUT29 | 29A/B/C |
| 24 | OUT14 | 14A/B/C | 23 | OUT30 | 30A/B/C |
| 22 | OUT15 | 1***/B/C | 21 | OUT31 | 31A/B/C |
| 20 | OUT16 | 16A/B/C | 19 | OUT32 | 32A/B/C |
| 18 | COM1-16 | 17 | COM17-32 | ||
| 16 | COM1-16 | 15 | COM17-32 | ||
| 14 | COM1-16 | 13 | COM17-32 | ||
| 12 | COM1-16 | 11 | COM17-32 | ||
| 10 | 24VDC | 9 | 24VDC | ||
| 8 | 24VDC | 7 | 24VDC | ||
| 6 | - | 5 | - | ||
| 4 | - | 3 | - | ||
| 2 | CBSE | 1 | CBSE | ||
32路继电器隔离输出端子板
配用DCS模块：ADV551 配套电缆：AKB331
ADV561 配套电缆：AKB337
作用形式：机械式继电器隔离 干接点输出（A为NO，B为NC）
内部连接形式：IDC座 50P 两组 可单一或冗余输入
现场连接形式：M3螺钉带透明盖板端子块四组，端子板可整体拨插
电源接线形式：M3.5螺钉端子
负载：30VDC，1.***每路
最小负载：5V，10mA
内部电源供电：24VDC 0.8***，带LED指示和过流、过压、反接保护
回路指示：LED动作指示
绝缘电阻：最小10MΩ（500VDC）
环境温度和湿度：0~50℃，10-90%RH
尺寸：482mm*127mm
重量：2.0Kg
| ARM55C | |||||
| PIN NO | SIGNAL | TERMINAL | PIN NO | SIGNAL | TERMINAL |
| 50 | OUT1 | 1A/B/C | 49 | OUT17 | 17A/B/C |
| 48 | OUT2 | 2A/B/C | 47 | OUT18 | 18A/B/C |
| 46 | OUT3 | 3A/B/C | 45 | OUT19 | 19A/B/C |
| 44 | OUT4 | 4A/B/C | 43 | OUT20 | 20A/B/C |
| 42 | OUT5 | ***/B/C | 41 | OUT21 | 21A/B/C |
| 40 | OUT6 | 6A/B/C | 39 | OUT22 | 22A/B/C |
| 38 | OUT7 | 7A/B/C | 37 | OUT23 | 23A/B/C |
| 36 | OUT8 | 8A/B/C | 35 | OUT24 | 24A/B/C |
| 34 | OUT9 | 9A/B/C | 33 | OUT25 | 2***/B/C |
| 32 | OUT10 | 10A/B/C | 31 | OUT26 | 26A/B/C |
| 30 | OUT11 | 11A/B/C | 29 | OUT27 | 27A/B/C |
| 28 | OUT12 | 12A/B/C | 27 | OUT28 | 28A/B/C |
| 26 | OUT13 | 13A/B/C | 25 | OUT29 | 29A/B/C |
| 24 | OUT14 | 14A/B/C | 23 | OUT30 | 30A/B/C |
| 22 | OUT15 | 1***/B/C | 21 | OUT31 | 31A/B/C |
| 20 | OUT16 | 16A/B/C | 19 | OUT32 | 32A/B/C |
| 18 | COM1-16 | 17 | COM17-32 | ||
| 16 | COM1-16 | 15 | COM17-32 | ||
| 14 | COM1-16 | 13 | COM17-32 | ||
| 12 | COM1-16 | 11 | COM17-32 | ||
| 10 | 24VDC | 9 | 24VDC | ||
| 8 | 24VDC | 7 | 24VDC | ||
| 6 | - | 5 | - | ||
| 4 | - | 3 | - | ||
| 2 | CBSE | 1 | CBSE | ||
